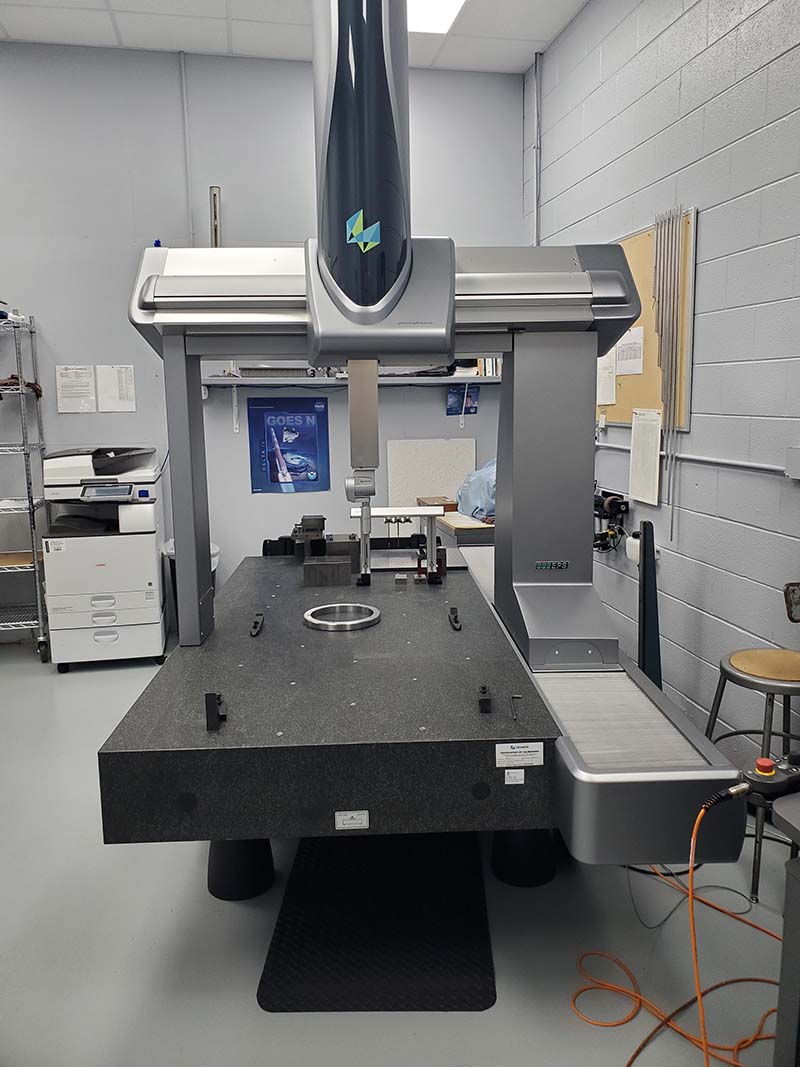

At JB Tool, Die & Engineering, Inc., we have a Metrology Lab on site, where we utilize hand tools to coordinate measuring machines (CMMs) to portable measuring arms, and optical scanners, we provides inspection services for when dimensional measurement matters.
We utilize our Metrology lab to qualify our manufacturing as well as offer our customers services like, part inspection, gage qualifications and recertification, reverse engineering.
Please contact us with any questions, and see below for details.
Industry Focus | Aerospace Agricultural Automotive Electric Motors Electronic Energy Food Processing Industrial Machine Tool | Marine Medical Military Optical Packaging Pharmaceutical Plastics Metal Stamping Wire |
Intended Application | Machine components Engine components Turbine components Hydraulic components Construction equipment Shafts Castings Forgings Valves | Spindles Bushings Cams Dies Tooling Fixtures Gauges Molds |
Milling Processes | Drilling Boring Counterboring Countersinking Pocketing | 3D Profiling Cam Profiling Reaming Tapping |
Materials (Metals) | Alloy Steels Aluminum Brass Bronze Alloys Carbon Steel Copper Iron Lead | Magnesium Monel Nickel Powdered Metals Stainless Steel Titanium Tool Steels Tungsten |
Materials (Exotic & Precious Metals) | Inconel Invar Kovars Monel Superalloys Tantalum |
|
Materials (Plastic Polymers) | ABS (Acrylonitrile Butadiene Styrene) Acetal Acrylic Fiberglass Reinforced Plastics Nylon Phenolic Polyamide-Imide Polycarbonate Polyetheretherketone (PEEK) Polyetherimide | Polyethylene Polyphenylene Sulfide Polypropylene Polystyrene Polysulfone PTFE (PolyTetraFluoroEthylene) PVC (Polyvinyl Chloride) PVDF (Polyvinylidene Fluoride) Teflon |
Materials (Other Materials) | Ceramic Composite Materials | Fiberglass Graphite |
Type of Milling Machines | Universal Knee-type Vertical Milling | High Speed Vertical Milling Horizontal Milling |
Cutters | Flat end mill Ball end mill Chamfer mill Face mill | Twist mill Reamer Specialty Tap |
Cutting Tools | High-speed steel (HSS) Carbide Carbon Steel | Ceramics Cobalt High Speed Steel Diamond |
Axes | 5 | |
Type of Collets / Adapter | C5 Collets Cat40 | Cat50 Heat Shrink - holders for high speed milling |
Vise | Plain Swivel-type |
|
Equipment Capabilities | Automatic Tool Changers Servo-drive motors Coolant systems Grinding Infinite Rotary Variable spindle speeds | Pallet Changer High speed machining Special Fixturing CAD Design Services CAM Programming Services Reverse Engineering |
Surface Finish | 8in | |
Tolerances | Straightness : ± 0.0005 Concentricity: ± 0.0005 | Diameter (outer/inner): ± 0.0005 in Length (over _42 in): ± 0.0005 in |
Length | VMC Max 84in | Horizontal Max 84in |
Width | VMC Max 40in | Horizontal Max 60in |
Height | VMC Max 30in | Horizontal Max 72in |
Production Volume | Specialty Production Shop Prototype Low Volume | Small Run Large Run |
Lead Times Available | Quoted on job by job basis Emergency services available | Rush Services Available |
Industry Standards | ISO 9001-2008 REGISTERED | |
File Formats | AutoCAD (DWG) BMP Bit Mapped Graphics Catia (CGR) DXF Drawing Interchange Format, or Drawing Exchange Format GIF Graphics Interchange Format IGES Initial Graphics Exchange Specification, ANSI file format. Inventor (IDW, IPT) | JPG or JEPG Joint Photographic Experts Group MasterCam (MDX, MC8, MC9, SET) Portable Document Format SolidWorks (SLDPRT,SLDDRW,SLDDRT) STEP Standard for the Exchange of Product Model Data TIFF Tagged Image File Format |
