DESIGNS AND MANUFACTURES
PRECISION TOOLING, DIES AND AUTOMATION MACHINERY
Watch Our Video Request a QuoteDESIGNS AND MANUFACTURES
PRECISION TOOLING, DIES AND AUTOMATION MACHINERY
Watch Our Video Request a QuotePrecision Mold Making, Tool & Die Design and Manufacturing
We specialize in engineering and manufacturing high speed rotary compression molds and injection mold tooling….
Custom Equipment & Tooling for Plastic Closure Manufacturing
We design and manufacture: rotary compression molding machines, rotary folding & slitting machines, cap handling equipment and closure specific tooling…
CNC Milling Services
We have a wide range of horizontal and vertical CNC Milling Equipment from 2-axis up to 5-axis capabilities…
Turning Services
We offer a wide range of Turning Services utilizing, 2-axis lathes with center, CNC, gap bed, and tracer lathes from polymers to hardened steel…
Inspection / Reverse Engineering
We offer inspection services ranging from Reverse Engineering to Gage Qualification and Recertification…
Wire & Sinker Electrical Discharge (EDM) Services
We offer multiple EDM operations including: EDM drilling, sinker EDM, and wire EDM…
Design and Engineering Services: On-Site & In-House
We offer full design, automation, prototyping, consulting, research & development, and reverse engineering…
Custom Automation Machinery - Turnkey Systems
We design, manufacture, and service machines to aid in manufacturing and inspection processes…
Industries Served
Aerospace
Job Shop
Medical
Batch Process Manufacturing
Automotive
Product Portfolios
Fabrication of Stator Support Assembly Ring
Our production process of this Stator Ring included machining, turning, and welding to create this specialty fixture that consisted of a concentric rings within .005″ with an outer Diameter of 30″…
Custom CNC Milling of Tool Steel
After designing this 28mm forming pin, we manufacture using CNC Turning and Milling with key features of ± .0002″…
Custom Fabrication for the Aerospace Industry
Using various certified materials including titanium, Invar, and Kovar we utilize many of our manufacturing capabilities to…
Molded Tool Steel Cavity
We produced this 4-¼” diameter mold cavity with a wall thickness of .045″ to .078″ using our CNC Lathes and Mills, the engraving was produced using our in-house EDM…
Gas Turbine Component Fabrication
We fabricated using Inconel 625, 304L CRES, and 347 CRES a variety of energy conservation components for a gas turbine engine…
Precision Machine Design of a Rotor Core Assembly Machine
Our machine design team engineered an automated rotor core assembly machine that included steps such as: assembling the center shaft to the body, inspecting for pin presence and depth, testing the core, and unloading…
On-Site Service Relocation of Equipment
We designed a new floor layout and organized the moving of 13 manufacturing cells, containing 6 major pieces of equipment each…

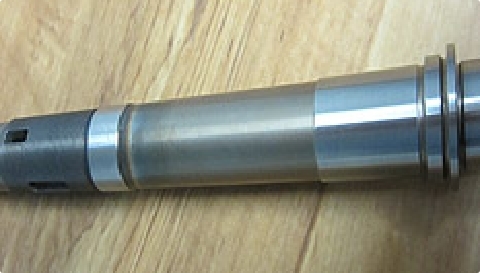

Air-Hardening Tool Steel Spindle Shaft
Our customer required a spindle shaft to be constructed from air-hardening AISI A6 tool steel, using CNC cylindrical grinding to reach the finished dimensions of 9.5″ length and 1″ diameter with a concentricity of 0002″…
Custom Manufacture of Rotary Cap Slitting Machine
We design and manufacture high speed rotary folding and slitting machines in various closure sizes…
Machine Assembly & Fabrication
We design, manufacture and program automated machines that cover a wide range of processes, from machining centers to assembly machines…
Why Work with Us
JB Tool, Die & Engineering, Inc. was established in 1962 by the partnership of James Beltz and Calvin Bear.
In just three years JB Tool outgrew the building in downtown Fort Wayne, where they began, and moved to the Interstate Business Park where they are presently located…
JB Tool was established in 1962 by James Beltz & Calvin Bear.
JB Tool has been ISO 9001:2015 certified since 2012.
JB Tool continues to be privately owned and operated.
